Land Rover Timing Chain System Replacements in Seattle

There are few vehicles that blend comfort, capability, and power quite like a Land Rover. Whether you are driving a Range Rover, Range Rover Sport, LR4, Discovery, or other Land Rover model equipped with a supercharged V6, naturally aspirated V8, or supercharged V8 engine, these vehicles are built to deliver a smooth and confident driving experience. However, underneath that refined exterior is a highly complex engine that depends on exact mechanical timing to operate correctly.

On most Land Rover engines produced between 2011 and 2020, timing chain system wear is one of the more serious issues owners may encounter. When caught early, timing chain problems can often be repaired and corrected simply. When ignored, they can lead to expensive and often catastrophic engine failure.

What Is a Timing Chain?

A timing chain is a metal chain, much like a bike chain, inside the engine that keeps the crankshaft and camshafts synchronized to ensure the pistons and valves move at exactly the right time. This is critical because the engine’s intake valves, exhaust valves, spark, and fuel delivery all depend on precise timing to make combustion.

Unlike a traditional rubber timing belt, a timing chain is designed to be more durable and is lubricated by engine oil. However, timing chains, guide rails, tensioners, sprockets, and other camshaft timing components are all still subject to wear over time. As mileage increases, the chain can stretch, the plastic guides can wear or break, and the hydraulic tensioners can lose their ability to keep the chain tight, all resulting in the need for replacement, lest the chain stretches too much and “jumps time.”

How Land Rover Timing Chains Are Different

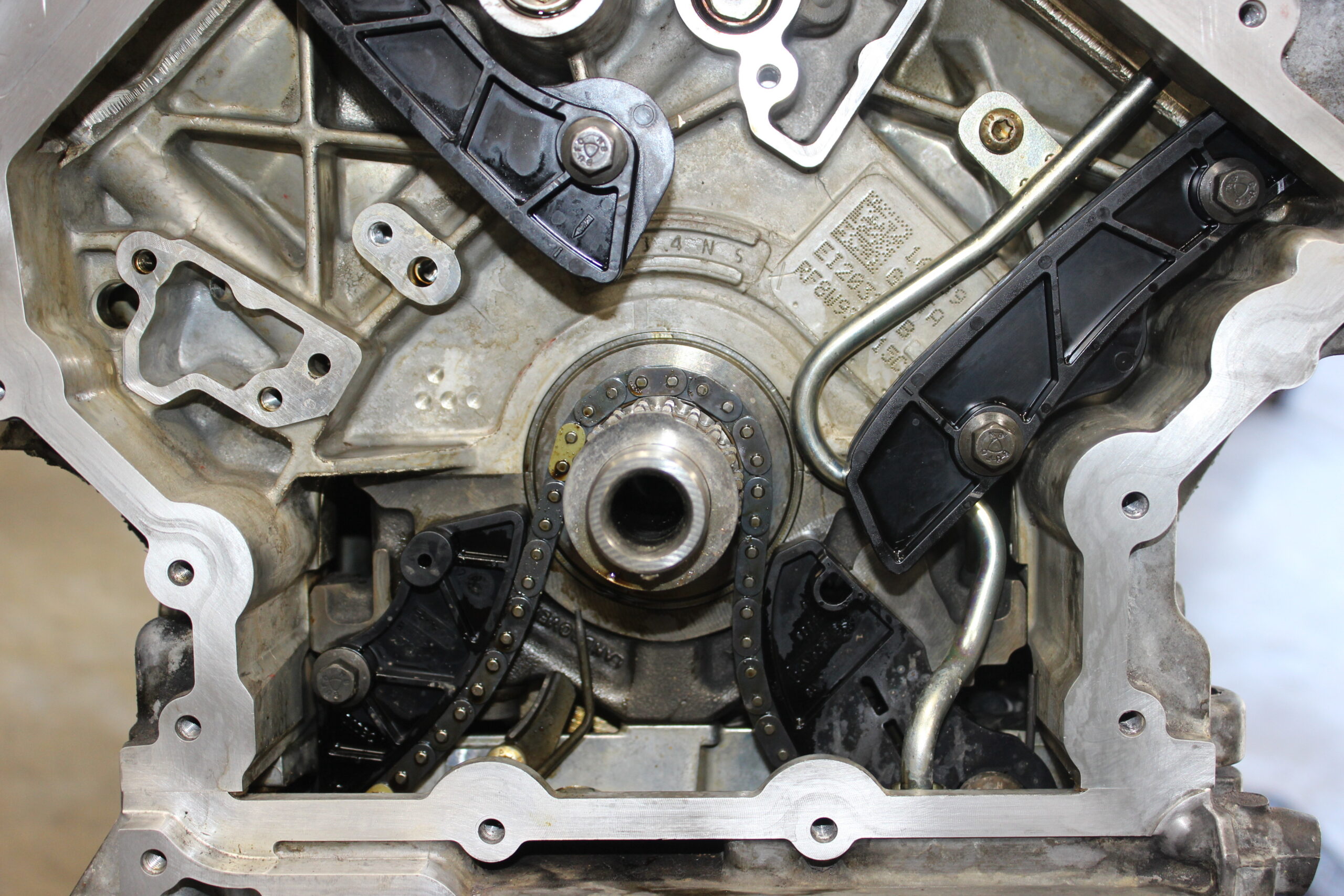

The timing chain systems used in Land Rover V6 and V8 engines are not simple in design. These engines use a complex timing arrangement to control four camshafts with variable valve timing sprockets all while tying in operation of the oil pump circuit. Many components are necessary to keep the timing chain system operating as intended and if any one of them fail, the rest of the system is thrown out of whack.

Because these engines are tightly packaged, accessing the timing chain system is quite labor-intensive. On supercharged engines, the supercharger itself must be removed to gain proper access, only then can repairs be done. The timing system is also very much dependent on clean engine oil and proper oil pressure, since the chain tensioners and camshaft timing adjusters rely on oil to function correctly. Extended oil service intervals (anything past every 5000 miles), low oil level, carbon build-up, or general wear from age and mileage can all contribute to timing chain noise and timing system failure.

Symptoms of a Worn Land Rover Timing Chain System

A failing timing chain system can show up in several ways. Some drivers may notice a rattling or clattering sound from the engine during startup while others may experience a check engine light, rough running, misfires, reduced power, or fault codes related to camshaft and crankshaft correlation.

In some cases, the vehicle may still seem to drive normally even while the timing chain system is beginning to wear. That is part of what makes this issue so important to inspect properly. A small amount of chain stretch or guide wear may not immediately make the vehicle undrivable, but it can still be a sign that the timing system is no longer operating as precisely as it should.

Because these engines are “interference” engines, incorrect timing can result in the valves on the top of the engine to contact the pistons on the bottom of the engine. If the valves and pistons can collide, a full cylinder head rebuild is necessary at minimum and often an engine replacement is necessary.

Schedule Your Land Rover Timing Chain Inspection Today

At Precision Motorworks, our technicians understand the unique service needs of Land Rover V6 and V8 engines. We use the most up-to-date diagnostic equipment, with manufacturer software tools and factory-level service information to inspect, diagnose, and repair timing chain system concerns properly, among other Land Rover concerns.

If your Land Rover has a timing chain rattle, check engine light, camshaft timing faults, rough running, or you simply want peace of mind as your vehicle ages, bring it to Precision Motorworks for an inspection. Our Land Rover specialists will evaluate the condition of your timing chain system and help you make the right repair decision before a small noise becomes a major engine problem.

Call or text Precision Motorworks in Seattle today to schedule timing chain inspection and service for your Land Rover!
